System 5630

System 5630

Patented Seamless Coating System for Research

Get Started

System Overview

Seamless System 5630 is a patented process for creating 360 degrees of seamless protection by enclosing walls, ceilings, floors and joints. 5630 features our highest level of sanitary protections, with a decorative quartz for flooring and an impenetrable 50 – 60 mil fiberglass reinforced wall and ceiling component . Wall to floor joints are fused with special reinforcing tape and a smooth and seamless transition is formed between the two surfaces. For the utmost in performance, the entire enclosure can be sealed with a UV-resistant polyaspartic coating.

System Components

The system components below outline each layer used within the coating system and the role it plays in overall performance. From the initial prime coat to subsequent build and top layers, each product is selected to ensure proper adhesion, durability, and system integrity.

Coat Layer
Product Used
Additional Notes
Prime Coat
Walls & Ceiling: PC 101
Walls & Ceiling: Substitute PC 130 when the substrate is CMU.
Mat Adhesive
Sport Mat
Pore Filler
Body Coat
Walls & Ceiling: PC 200 / PC 1242 | Floors: PC 101 / PC 341 TDQ
Walls & Ceiling: Substitute PC 210 when a smoother finish is desired. | Floors: Apply PC 101 and lightly seed prior to 341 TDQ. Substitute PC 199 when moisture readings per ASTM F2170 show an RH reading above 75%.
Base Coat
Slurry Coat
Broadcast
Mat
Grout Coat
Floors: PC 341
Floors: Substitute PC 371 when a faster return to service is desired.
Wear Coat
Walls & Ceiling: PC 280 | Floors: PC 341
Floors: Substitute PC 371 when superior UV resistance and a faster return to service is desired.
Finish Coat
Opt. Finish Coat
Walls & Ceiling: PC 509S | Floors: PC 509G / PC 551
Walls & Ceiling: Used as an added layer of protection when a non-yellowing finish is desired. Satin finish. | Floors: Used as an added layer of protection when superior chemical resistance and a non-yellowing finish is desired.
Other Options

System Enhancements Offered

The enhancements below outline optional system components that can be incorporated to meet specific performance, safety, or aesthetic requirements. Each option is designed to integrate seamlessly with the base system while addressing unique project needs.

Coat Layer
Offered
Additional Notes
Cove Base
PC 311 TD TREADCOAT
Anti-Microbrial
PC 498 MICRO-GUARD
PC 498 is ionic silver bound in an inorganic matrix which hinders microbial growth and kills bacteria. 99.9997% reduction of bacteria, fungi, and actinomycetes
Membrane
PC 620 FLEXCOAT
Texture
Finish Textures
Prime Coat offers 3 finish textures to help reduce slippage. Texture A is our smoothest finish, offering the greatest cleanability. Texture B is our mid-level anti-slip finish, the recommended balance of slip resistance and cleanability. Texture C is our roughest finish, offering the most slip resistance and is recommended for industrial environments. Custom textures can be engineered to meet specific design requirements, and a mock-up is recommended to ensure customer satisfaction.
System Colors
GLAZECOAT Colors (Walls) & TERRAZZO ROCK Colors (Floors)
Additional Notes

Common Applications

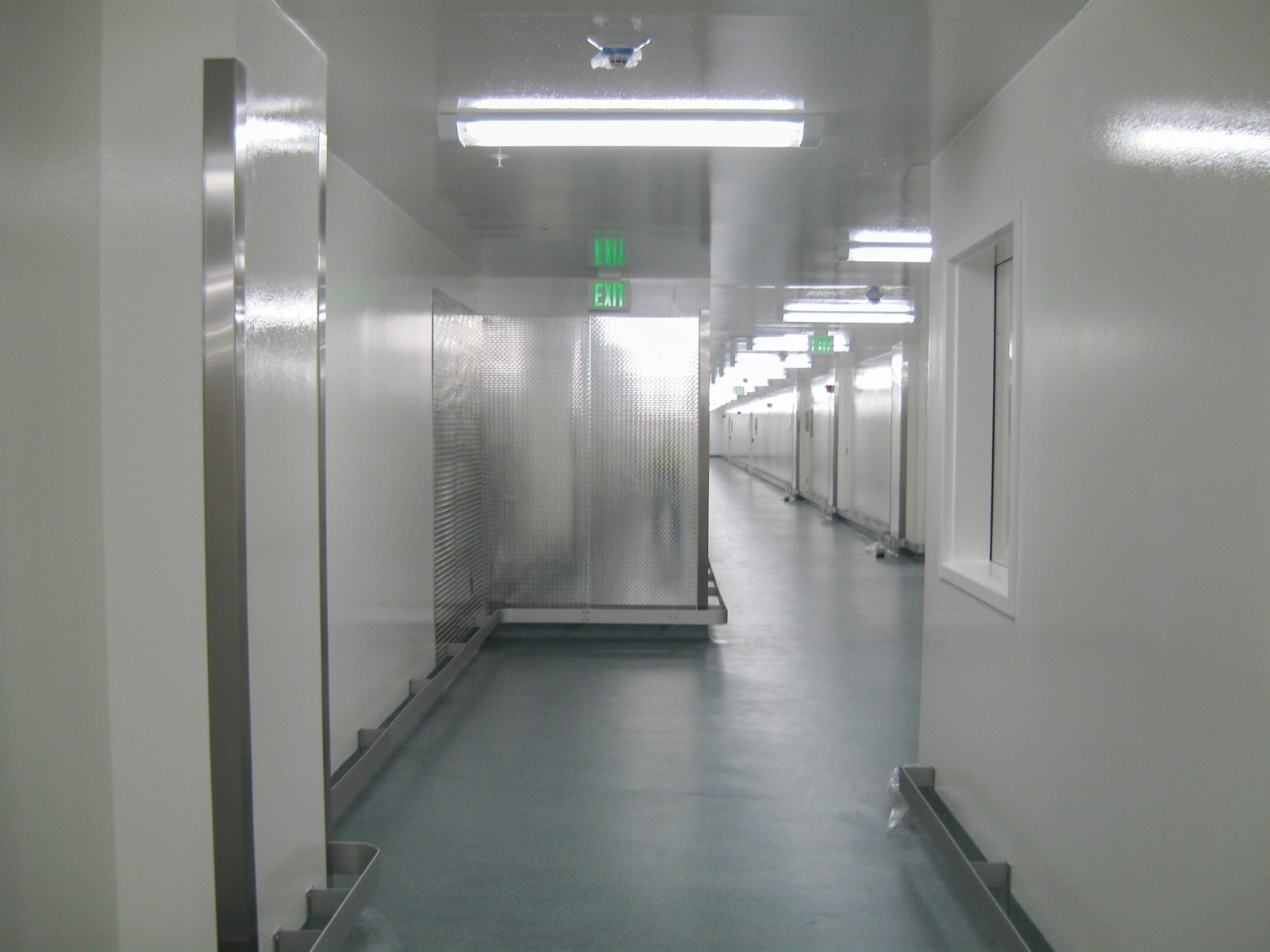

5630 is a patented process designed to go over almost any structural substrate including panel systems. It delivers a smooth finish and provides a completely seamless lining from floor to ceiling and eliminates joints, nooks and cavities. Specific applications include, but are not limited to: animal holding and research, laboratories, chemical processing, corridors, cage wash areas, vivariums, and clean rooms.

System 5630

Patented Seamless Coating System for Research

System Benefits

Ready to start your project, have questions about our coatings systems, or just a general inquiry? Reach out to our team today!

Talk to a Coatings Specialist

Colors Offered

For other color options, please contact a Prime Coat Representative!

Standard Colors

Solid-color, seamless flooring that delivers a clean, durable, and professional appearance.

C-18

C-05

C-08

C-13

C-12

C-06

C-02

C-17

C-14

C-01

C-03

C-16

Metallic

Reflective, fluid-style flooring that creates depth, movement, and a high-end custom look.

Midnight Blue

Burnt Sienna

Aqua

Shadow

Lemon

Glacier

Mocha

Latte

Silver

Cobalt

Violet

Caramel

Porcelain

Frost

Nickle

Amber

Merlot

Ruby

Lime

Onyx

Chestnut

Emerald

Quartz

Textured quartz broadcast system offering exceptional durability, slip resistance, and color consistency.

Granite

Auburn Sand

Pumpkin Spice

Crimpson Stone

Evergreen

Arctic Storm

Purple Haze

Azul

Sapphire

Autumn

Safari

Sage Green

Cretecoat

Concrete-look coating that blends natural cement aesthetics with seamless resin performance.

C-12 Tile Red Cretecoat

C-08 Black Cretecoat

C-02 Medium Gray Cretecoat

C-01 Dark Gray Cretecoat

C-03 Light Gray Cretecoat

Hybrid Flake

Multi-size flake blend providing visual depth, durability, and strong slip resistance.

Ocean

Stratus

Sandstone

Moss

Argyle

Terra

Stonehenge

Mocha HF

Plantain

Camouflage

Tempest

Paprika

Terrazzo Flake

Decorative flake system inspired by terrazzo, delivering a refined, speckled architectural finish.

1375-12 Ocean

1375-11 Blue Isle

1375-10 Sage

1375-09 Rose Stone

1375-08 Canary

1375-07 Tundra

1375-06 Black Ice

1375-05 Glacier

1375-04 Moonscape

1375-03 Brown Stone

1375-02 Cafe

1375-01 Taupe

Large Flake

Bold, oversized flake design that adds strong visual texture and modern character.

327-24 Stonehenge Large Flake

327-23 Tempest Large Flake

327-22 Moss Large Flake

327-21 Paprika Large Flake

327-20 Sandstone Large Flake

327-19 Stratus Large Flake

327-18 Terra Large Flake

327-17 Mocha Large Flake

327-16 Plantain Large Flake

327-15 Argyle Large Flake

327-14 Camouflage Large Flake

327-13 Ocean Large Flake

Random Flake

Natural-looking flake blend with varied sizes for a balanced, organic floor appearance.

Curacao

Confetti

Gladiator

Odyssey

Moon Dust

Sahara

Seashore

Cranberry

Glaze Coat

Smooth, high-gloss finish that enhances color depth while providing a protective surface.

C-18w White

C-16w Warm Sun

C-14w Tan

C-13w Beige

C-06w Twilight Blue

C-03w Light Gray

Crucoat LL

Solid-color, seamless wall coating that delivers a clean, durable, and professional appearance.

C-18 White Crucoat LL

C-16 Warm Sun Crucoat LL

C-15 Brandy Crucoat LL

C-14 Tan Crucoat LL

C-13 Beige Crucoat LL

C-06 Twilight Blue Crucoat LL

C-03 Light Gray Crucoat LL

Glaze Coat

Solid-color, seamless flooring that delivers a clean, durable, and professional appearance.

These are the colors for the wall portion of the system

C-18w White

C-16w Warm Sun

C-14w Tan

C-13w Beige

C-06w Twilight Blue

C-03w Light Gray

Terrazzo Rock

Decorative aggregate mortar that brings the elegance of terrazzo to high-traffic commercial environments.

326-19 Emerald

326-17 Amber

326-16 Quarry

326-15 Grapevine

326-14 Blue Agave

326-13 Oatmeal

Small Flake

Compact vinyl flake system that delivers a refined, lightly textured finish ideal for commercial and institutional spaces.

Stonehenge

Tempest

Sandstone

Ocean

Argyle

Mocha

Plantain

Camouflage

Moss

Terra

Paprika

Stratus

Flexcoat

High-performance flooring system delivering durable protection, visual depth, and dependable traction for commercial interiors.

C-14 Tan Flexcoat

C-08 Black Flexcoat

C-03 Light Gray Flexcoat

C-02 Medium Gray Flexcoat

Other Systems in this category

Explore Related Systems in This Category

Discover other Prime Coat systems engineered for similar environments and performance needs. Each delivers the durability and finish you'd expect, tailored to the demands of your specific space.

System 5630

Patented Seamless Coating System for Research

View System

System 5132

Decorative Flake seamless Coating System for Showers

View System

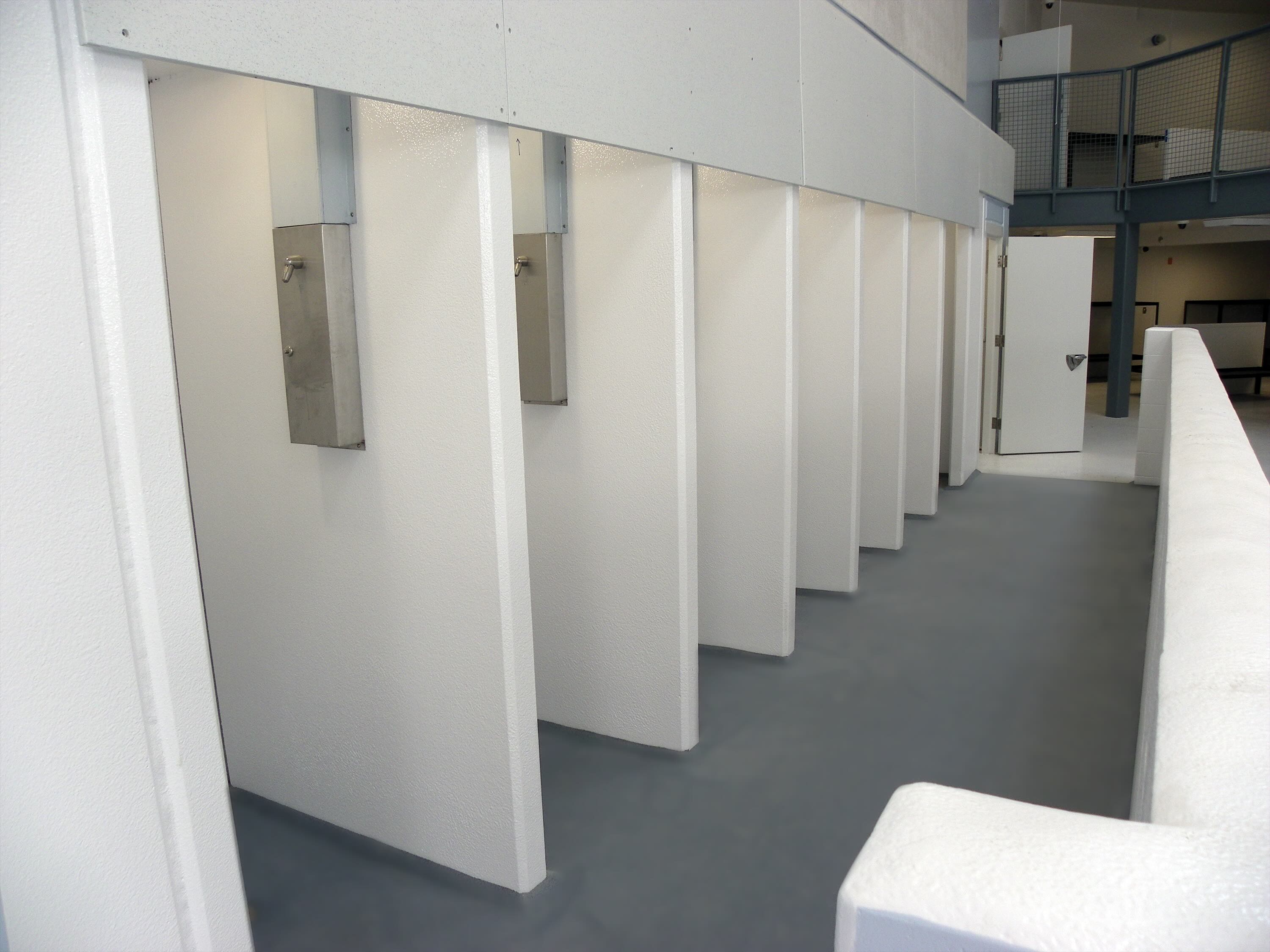

System 5130
